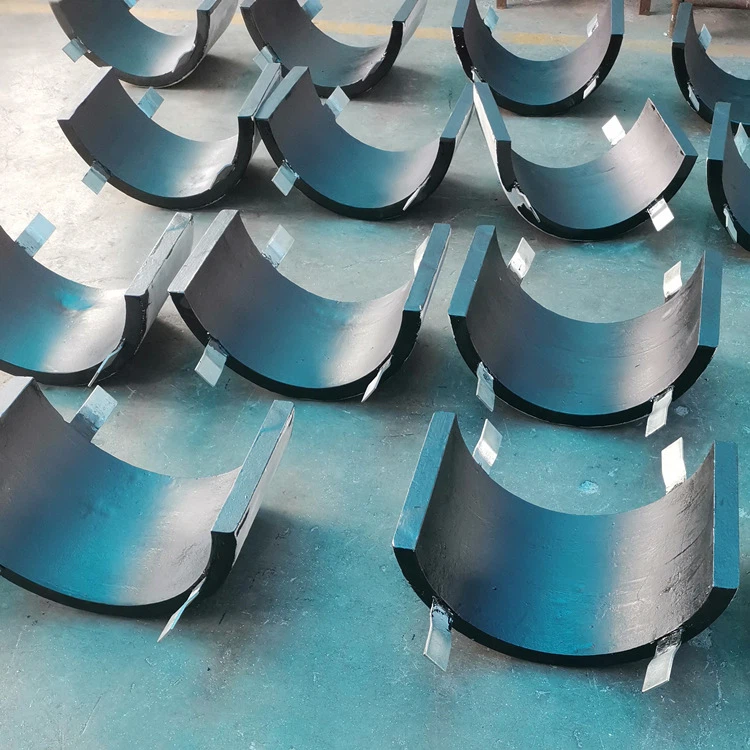

Anod gelang aluminium
Anod gelang aluminium yang diaktifkan indium kami direka khusus untuk perlindungan katodik saluran paip kapal selam/luar pesisir, pelepasan platform, longgokan jeti, apa-apa struktur keluli bulat, dan lain-lain. Kami menawarkan pelbagai shell setengah dan anod gelang bersegmen dalam jenis yang dikimpal dan lantang.
Anod gelang separuh shell (hujung persegi, dikimpal)
|
Tidak |
Diameter dalaman |
Panjang |
Ketebalan |
Jurang |
Berat bersih |
Berat kasar |
|
BS175 |
175mm (6.9 ") |
495mm (19.5 ") |
40mm (1.6 ") |
5 0 mm (2.0 ") |
28.5kg (62.8 lbs) |
3 0. 0kg (66.1 lbs) |
|
BS220 |
220mm (8.7 ") |
415mm (16.3 ") |
45mm (1.8 ") |
5 0 mm (2.0 ") |
4 0. 0kg (88.2 lbs) |
42.5kg (93.7 lbs) |
|
BS275 |
275mm (10.8 ") |
550mm (21.7 ") |
5 0. 8mm (2.0 ") |
55mm (2.2 ") |
62.5kg (137.8 lbs) |
68. 0 kg (149.9 lbs) |
|
BS325 |
325mm (12.8 ") |
480mm (18.9 ") |
40mm (1.6 ") |
5 0 mm (2.0 ") |
51. 0 kg (112.4 lbs) |
55. 0 kg (121.3 lbs) |
|
BS336 |
336mm (13.2 ") |
802mm (31.6 ") |
30mm (1.2 ") |
5 0 mm (2.0 ") |
55. 0 kg (121.3 lbs) |
57. 0 kg (125.7 lbs) |
|
BS406 |
4 0 6mm (16.0 ") |
350mm (13.8 ") |
65mm (2.6 ") |
5 0 mm (2.0 ") |
81. 0 kg (178.6 lbs) |
85. 0 kg (187.4 lbs) |
|
BS457 |
457mm (18. 0 ") |
550mm (21.7 ") |
51mm (2. 0 ") |
5 0 mm (2.0 ") |
125kg (275.6 lbs) |
128kg (282.2 lbs) |
Anod gelang separuh shell (hujung tirus, dikimpal)
|
Item No. |
Diameter dalaman |
Panjang |
Ketebalan |
Jurang |
Berat bersih |
Berat kasar |
|
BT114 |
114mm (4.5 ") |
3 0 5mm (12.0 ") |
38mm (1.5 ") |
5 0 mm (2.0 ") |
11. 0 kg (24.3 lbs) |
12.5kg (27.6 Ibs) |
|
BT141 |
141mm (5.6 ") |
400mm (15.7 ") |
38mm (1.5 ") |
5 0 mm (2.0 ") |
17. 0 kg (37.5 lbs) |
19. 0 kg (41.9 lbs) |
|
BT220 |
220mm (8.7 ") |
410mm (16.1 ") |
65mm (2.6 ") |
5 0 mm (2.0 ") |
44. 0 kg (97. 0 lbs) |
46. 0 kg (101.4 lbs) |
|
BT275 |
275mm (10.8 ") |
56 0 mm (22.0 ") |
45mm (1.8 ") |
5 0 mm (2.0 ") |
54. 0 kg (119. 0 lbs) |
57. 0 kg (125.7 lbs) |
|
BT325 |
325mm (12.8 ") |
500mm (19.7 ") |
5 0 mm (2.0 ") |
5 0 mm (2.0 ") |
68. 0 kg (149.9 lbs) |
75. 0 kg (165.3 lbs) |
|
BT408 |
408mm (16.1 ") |
510mm (20.1 ") |
45mm (1.8 ") |
5 0 mm (2.0 ") |
78. 0 kg (172. 0 lbs) |
84.5kg (186.3 lbs) |
